Product Details
＋

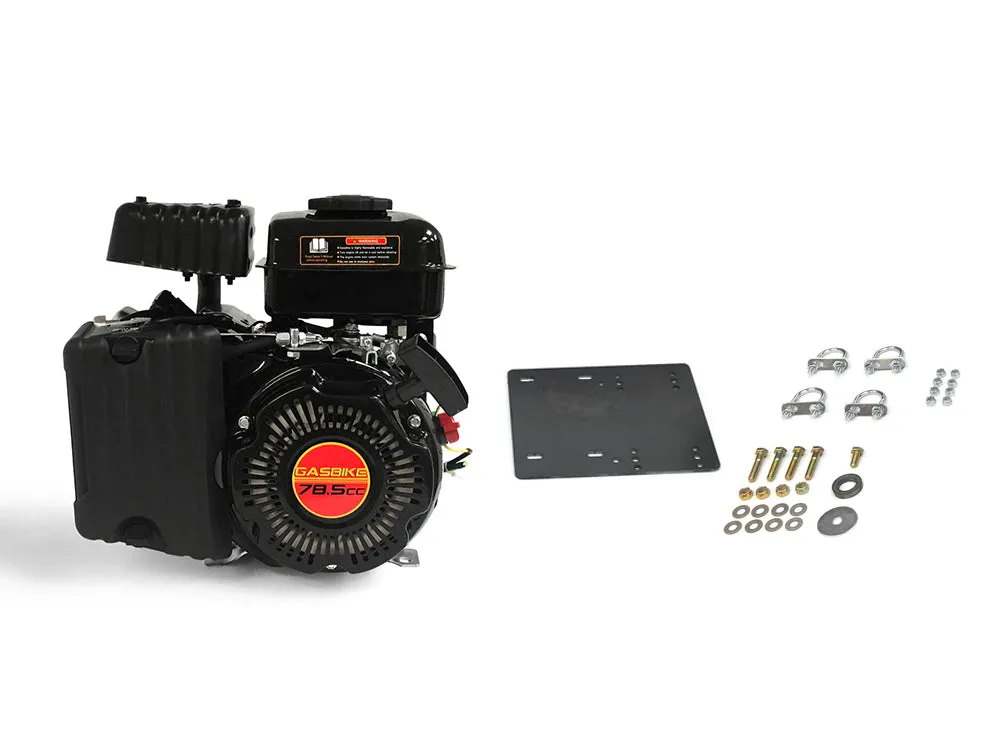

79cc Gasbike Engine With Trike Engine Mount Only
The construction and engineering on this unit have been upgraded for improved durability and service life. This tough gas engine features a durable cast iron cylinder that withstands wear and abuse, fuel shut off for safe transport and gas saving overhead valves for a cooler, cleaner performance. The horizontal shaft design makes this an ideal all-purpose gas engine.
- Upgraded engineering and construction for improved lifespan
- Durable cast iron cylinder withstands wear and abuse
- User-friendly controls for easy starting and operation
- Fuel shut off for safe transport
- Ball bearing support shaft for long life
- Recoil start
ENGINE SPECS:
| Name | 3 HP (78.5cc - 79cc) OHV GasBike Horizontal Shaft Gas Engine |
|---|---|
| SKU | 69733 |
| Brand | GasBike Engines |
| Engine displacement (cc) | 78.5cc - 79cc |
| Horsepower (hp) | 3 |
| Maximum speed (rpm) | 3600 RPM |
| Maximum Torque (ft. - lbs.) | 3.5 ft. lbs. @ 2500 RPM |
| Mounting pattern | 102mm L x 104mm W - 61.5mm W (4 in. L x 4.9 in. W - 2.4 in. W ) |
| Mounting type | Horizontal |
| Quantity | 1 |
| Shaft rotation direction | Counter clockwise |
| Sound rating (dB) | 104 dB |
| Start type | Recoil start |
| Product Height | 11-3/4 in. |
| Product Length | 12-1/4 in. |
| Product Weight | 24.25 lbs / 11 kg |
| Product Width | 11-1/2 in. |
| Shaft length (in.) | 2.4 in. (60.1mm) |
| Shipping Weight | 26 lbs |
| Stroke length (in.) | 37 mm |
NOTE: NO MANUAL INCLUDED.
Our gasoline operated products are NOT compliant with Environmental Protection Agency ( E.P.A. ) or California Air Resources Board (C.A.R.B) for the use on/off Public roads. Upon purchase, the buyer agrees to use products for racing (closed-course competition) only and NOT for on/off public roads.
